Next generation C-NAEGS series - NABEL's technology and experience all brought together
The notable characteristic of the Robot Packer is the separation of grading and packing processes.
Graded eggs are first stocked before packing. The washing and grading processes are not affected even when the packing lines stop.
Minimum production loss due to machine faults leads to a high effeciency.
Features
Slower speed, softer on eggs
Processing single-row 40,000 eggs at the speed of 30,000eggs/hour.
The carrying speed of C-NAEGS is down to 635mm/sec from 847mm/sec, which equates to 25% reduction from the past model, and physical impact on the eggs is reduced. This is achieved with the narrow-pitch carrier which shortens the distance between the eggs. The structure is simple and has a good reliability.
Compact
The machine width is narrower by half as the basic structure has been re-designed. Simple design makes it easy to layout.
Suitable for small-batch and variety-ranging production
Products with different packaging and labelling can be made with two extra packing lines. The controller makes an automatic selection for better effeciency in tray feeding.
Hygienic structure
Stainless design as the stadard in food processing industry
The corrosion resistant stainless steel frames are hygienic and easy to clean.
The machine legs are designed slim so that it becomes easy to clean the flooring with a wet mop.
With the optional carrier washer CWU400, the carrier units which come in contact with eggs are always kept clean.
Safe and delicious eggs for all consumers.
Load-cell weigher
C-NAEGS 's load-cell weighers are waterproofed. The weighing unit can be washed when rubber cap is put on. The plates on the weigher are detachable and washable. The structure is simple and does not require regular maintenance to ensure steady operation.
Specifications
| Code | C-NAEGS4000 | |
|---|---|---|
| Capacity | 40,000 eggs/hour (Max.) | |
| Power required | Power Capacity | 3-phase 200V 75A*1 |
| 1-phase 100V 20A*2 | ||
| Air volume | 50～100ℓ/min（ANR） | |
| Hot water volume | 10ℓ/min or over （60℃） | |
| Water volume | 10ℓ/min （200KPa）*3 | |
| Container | Plastic pack | 5*4×2 3×2*4 4×2*4 6×2 |
| Pulp-mold tray | 5×8 5×9 6×9 6×5*4 | |
| Plastic tray | 6×5 | |
| Pulp-mold tray | 5×2 6×2*5 | |
| Functions | Cassette type automatic feeder (4 sizes)*6 | |
| Automatic feeder for pulp-mold trays (3 size) | ||
| Automatic feeder for plastic 30-egg trays | ||
| Automatic label feeding (4 sizes)*6 | ||
| input and turnover printing | ||
| Optional devices | Accumulator, Auto Loader, Chemical concentration adjuster, Multi-layer Egg Washer, Automatic Foamer, Automatic Dirt Detector, Automatic Crack Detector, UV Sterilizer, Abnormal Egg Detector, Feeder for specially designed packs, Carrier Washer, Fixed-weight packer program, Production indicator program*7, Repacking function*8 |
|---|
*1 Neccessary if all the above devices are used
*2 Fo product lines
*3 Neccessary if Automatic Foamer (optional) is used
*4 optional
*5 Compatible with carrier to exit robot system
*6 Installation up to five units
*7 Function for producing packs
*8 Packing function for eggs on trays
Designs and specifications are subject to change without notice.
NAEGS stands for NABEL Efficient Grading System.
It is a term coined by NABEL upon the separation of grading and packing for the first time in the world.
*2 Fo product lines
*3 Neccessary if Automatic Foamer (optional) is used
*4 optional
*5 Compatible with carrier to exit robot system
*6 Installation up to five units
*7 Function for producing packs
*8 Packing function for eggs on trays
Designs and specifications are subject to change without notice.
NAEGS stands for NABEL Efficient Grading System.
It is a term coined by NABEL upon the separation of grading and packing for the first time in the world.
Optional Equipment
CWC400 Carrier Washer
It is desirable to keep the carriers clean which directly come in contact with eggs. However manual cleaning of each unit can be hard work. With the single switch turned on, carrier washer washes and drys all the units to reduce the maintenance workload.

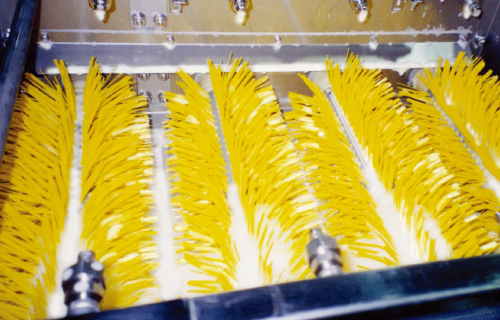

AWU330 Automatic Foam-washer
Daily cleaning which involves detachment of brushes from the washer and dryer can be hard work. The automatic foamer projects detergent foam, rinses and dries the whole interior of the machine as well as the brushes all automatically. This takes only 30 minutes. The supplementary hose allows cleaning specific spots.
WWW4000 Multi-layer Washer
Making eggs even cleaner while keeping gentleness to them... NABEL's solution for this is the "multi-layer".
Eggs literally go zigzag inside the machine so the washing process becomes longer. The number of brushes used is doubled and the washing capability has improved. The installation space and hot water volume consumption do not change from the existing models. A lower ratio of dirty eggs means more profit for customers.
Eggs literally go zigzag inside the machine so the washing process becomes longer. The number of brushes used is doubled and the washing capability has improved. The installation space and hot water volume consumption do not change from the existing models. A lower ratio of dirty eggs means more profit for customers.
BSB101 Remote Control Panel
It can be a nuisance just to walk all the way to the control panel from somewhere distant. BSB101 gives the right solution. It has a set of casters to move easily. By locating it wherever favorable, it is possible to operate while seeing the actual products.
